| Jain Solar Pumping Projects & Success Stories |
 |
Projects
Talwara, Punjab,

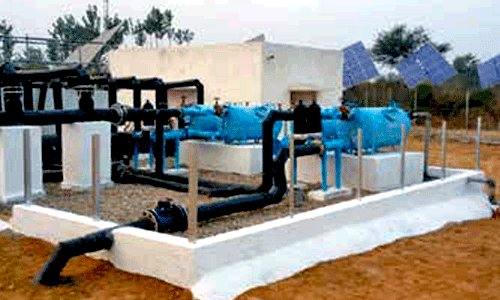

Solar Operated Community Micro Irrigation
|
Kangra, Himachal Pradesh,

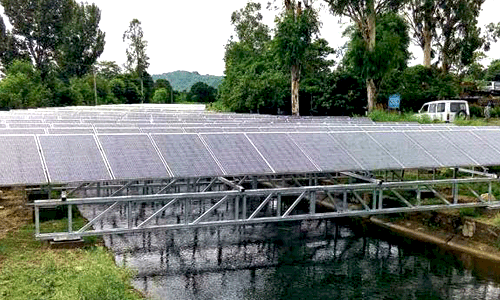

Solarisation of Lift Irrigation Pumping Station
|
Kurani (Lucknow), Uttar Pradesh,

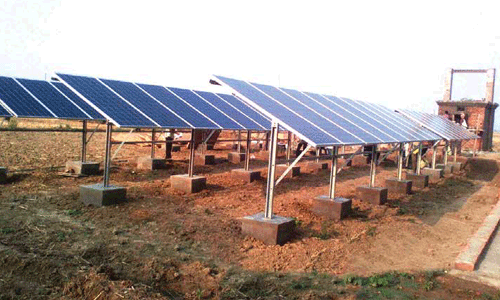

Solar Operated Community Tube Wells
|
Leh, Ladakh,

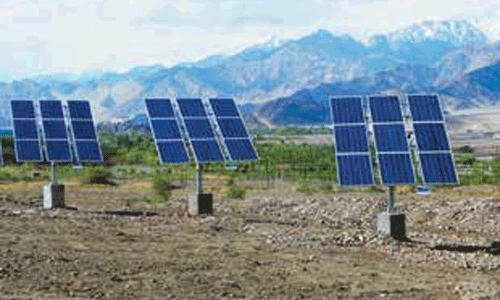

Solar Powered Integrated Micro Irrigation Project in Cold Desert
|
Rural Area,

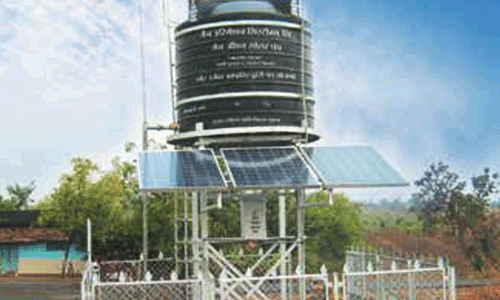

Solar Rural Drinking Water Supply
|
Raigarh, Odisha,

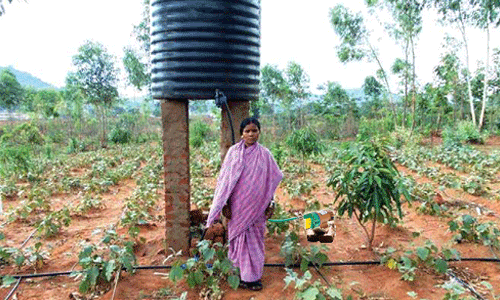

Nano Pump + DripKit
|
Takarkheda, Jalgaon,

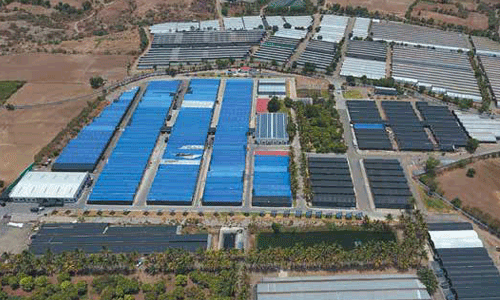

Solar Energy Hub Jain Tissue Culture Park
|
Jalgaon,

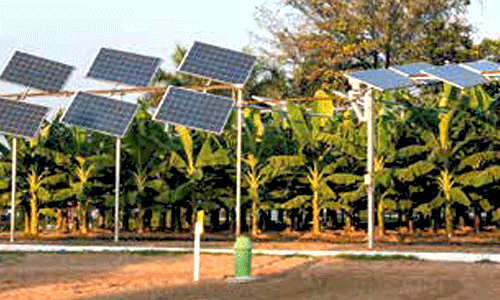

Future of Agriculture - AgroVoltaic Farming
|
|
Success Stories
Solar Powered Community Micro Irrigation in Punjab (Solar Agri Pumping)
Customer - Department of Soil Conservation, Talwara, Dist. - Hoshiarpur, Govt. of Punjab - first of its kind in the World
Solar powered community micro irrigation project
Total no. of solar pumping stations |
12 |
Solar pumping station capacity |
750 kW (1000 hp) |
Solar power plant capacity |
1.2 MWp |
Energy saved = Energy Generated (units / year) |
17,52,000 |
Solar Powered Tube Wells, Uttar Pradesh (Solar Agri Pumping)
Customer - Irrigation and Water Resource Department, Govt. of Uttar Pradesh
Solar powered community micro irrigation project
Pumping Capacity |
9.3 kW (12.5 hp) - 16.7 kW (22.5 hp) |
No of Pumping Stations |
20 nos |
Solar power plant capacity |
375 kWp |
Energy saved = Energy Generated (units / year) |
5,13,920 |
Solar Powered Micro Irrigation, Leh (Solar Agri Pumping)
Customer - High Mountain Arid Agriculture Research Institute, Leh
Solar Powered micro irrigation
Pumping Capacity |
7.5 kW (10hp) - 11 kW (15 hp) |
No of Pumping Stations |
4 nos |
Solar power plant capacity |
54 kWp |
Energy saved = Energy Generated (units / year) |
78,840 |
Atal Saur krishi Pump Yojana, Maharashtra (Solar Agri Pumping)
Customer - Maharashtra State Electricity Distribution company Limited
Solar Pump for individual farmer
Pumping Capacity |
2.2 kW (3 hp) to 5.5 kW (7.5 hp) |
No of Pumping Stations |
5,130 nos |
Solar power plant capacity |
21.16 MWp |
Energy saved = Energy Generated (units / year) |
3,08,93,600 |
Solar Pumps for individual farmer, Rajasthan (Solar Agri Pumping)
Customer - Rajasthan Horticulture Development Society, Jaipurd
Solar Pump for individual farmer
Pumping Capacity |
2.2 kW (3 hp) & 3.7 kW (5 hp) |
No of Pumping Stations |
9466 nos |
Solar power plant capacity |
34.93 MWp |
Energy saved = Energy Generated (units / year) |
5,10,07,436 |
Solar Pumps for individual farmer, Karnataka (Solar Agri Pumping)
Customer - Minor Irrigation Project, Bijapur
Solar Pump for individual farmer
Pumping Capacity |
3.7 kW (5 hp) |
No of Pumping Stations |
1260 nos |
Solar power plant capacity |
6 MWp |
Energy saved = Energy Generated (units / year) |
87,60,000 |
Solar Powered Lift Irrigation Stations, Himachal Pradesh (Solar Agri + Drinking Water
Customer - Department of Irrigation and Public Health, Govt. of Himachal Pradesh
Solar Powered Lift Irrigation Stations
Pumping Capacity |
37 kW (50hp) and 75 kW (100 hp) |
No of Pumping Stations |
5 nos |
Solar power plant capacity |
450 kWp |
Battery Bank |
250 units per day |
Energy saved = Energy Generated (units / year) |
5,74,875 |
Solar Pumps for Drinking Water Supply, Maharashtra (Hand Pump - Drinking Water)
Customer - Ground Water Survey & Development Agency, Pune, Maharashtra
Solar Pump for Rural Water Supply
Pumping Capacity |
0.74 kW (1 hp) solar pump with
water storage and hand pump |
No of Pumping Stations |
2750 nos |
Solar power plant capacity |
1.85 MWp |
Energy saved = Energy Generated (units / year) |
27,01,000 |
Solar Pumps for Village Water Supply, Odisa (Hand Pump - Drinking Water)
Customer - Odisha Renewable Energy Development Agency (OREDA)
Solar Pump for Rural Water Supply
Pumping Capacity |
0.74 kW (1 hp) solar pump with
water storage and hand pump |
No of Pumping Stations |
1229 nos |
Solar power plant capacity |
1106 kWp |
Energy saved = Energy Generated (units / year) |
16,14,760 |
Solar Pumps for Village Water Supply, Madhya Pradesh (Hand Pump - Drinking Water)
Customer - Madhya Pradesh Urja Vikas Nigam Limited, Bhopal
Solar Pump for Rural Water Supply
Pumping Capacity |
0.74 kW (1 hp) solar pump |
No of Pumping Stations |
1003 nos |
Solar power plant capacity |
1.2 MWp |
Energy saved = Energy Generated (units / year) |
17,52,000 |
|
|
|
